Description

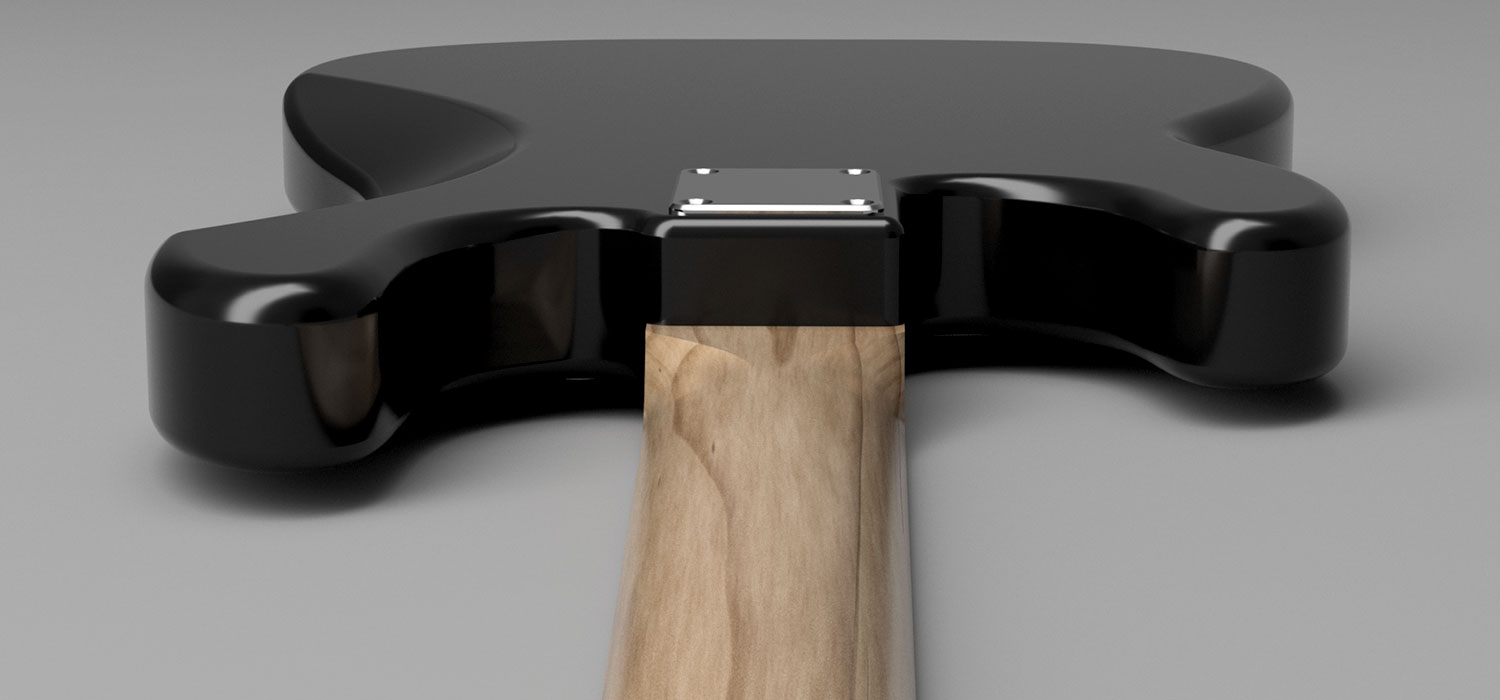

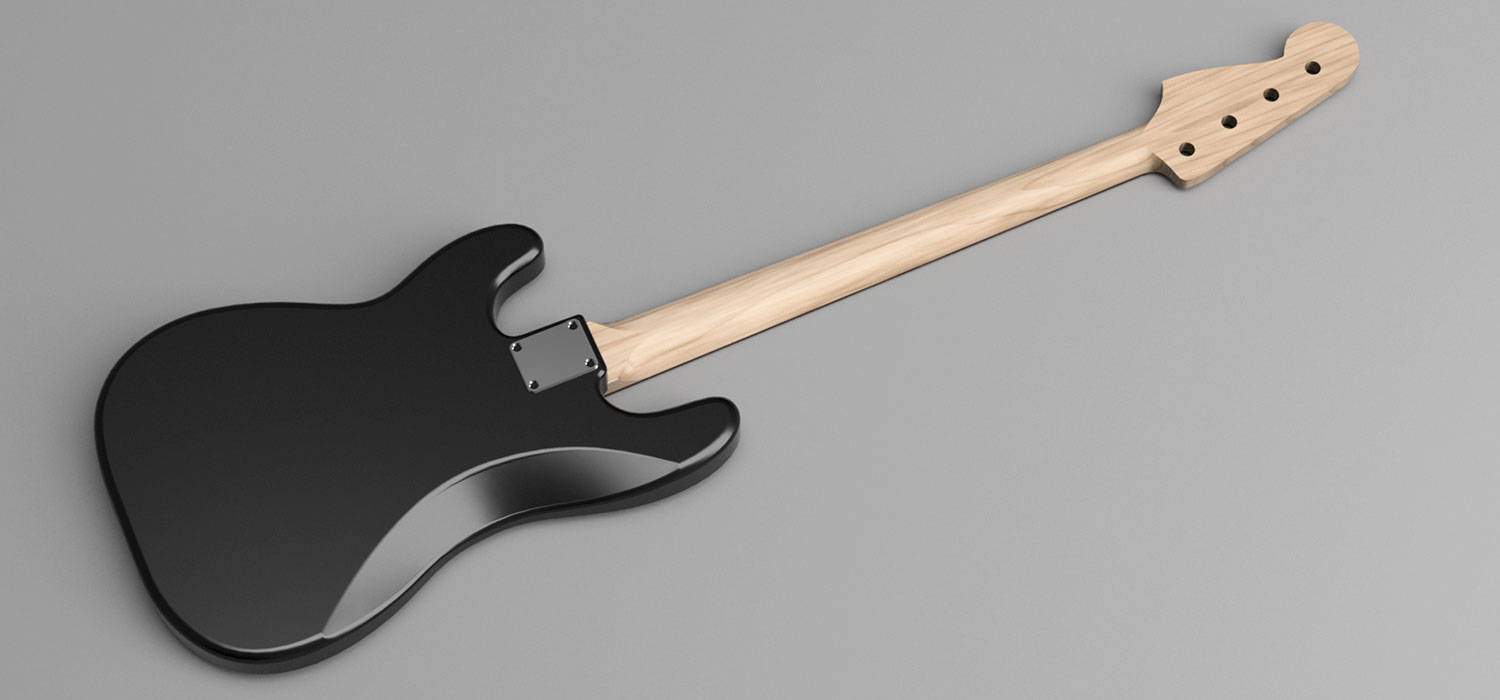

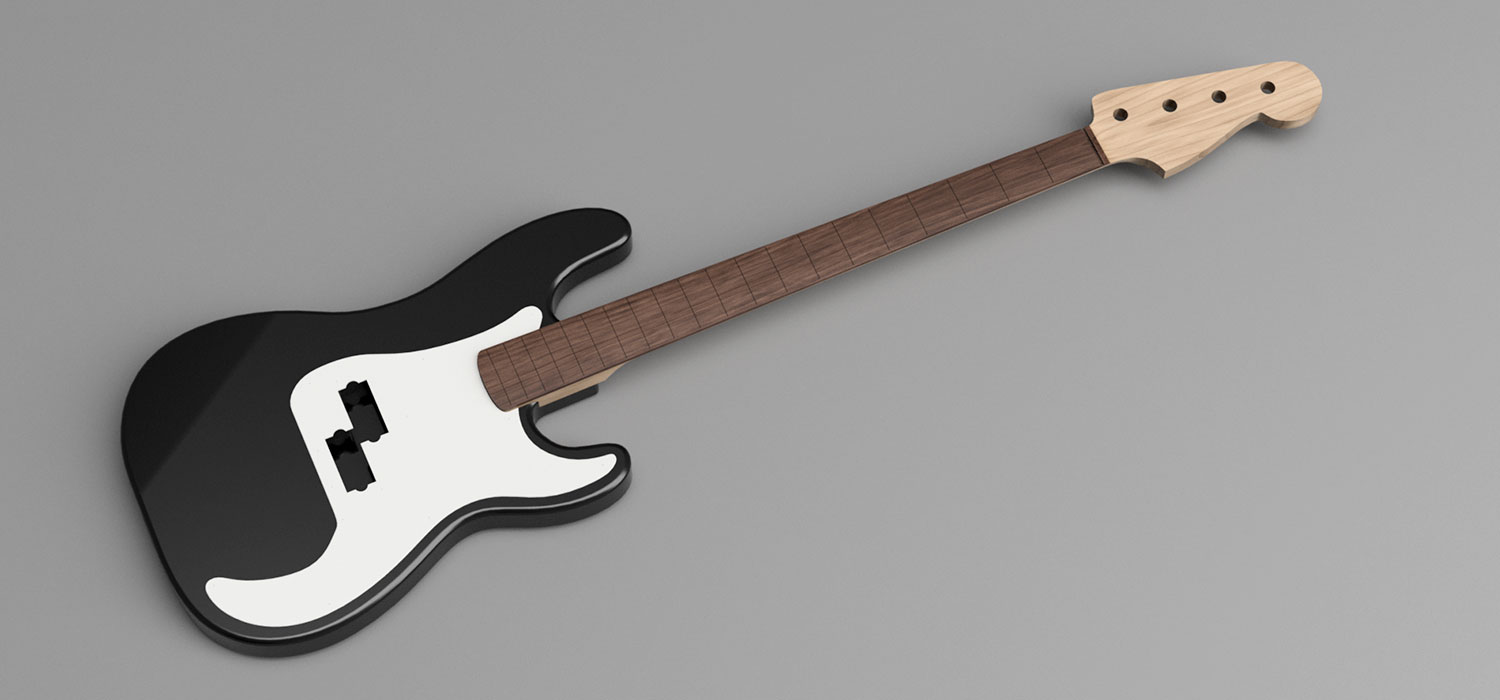

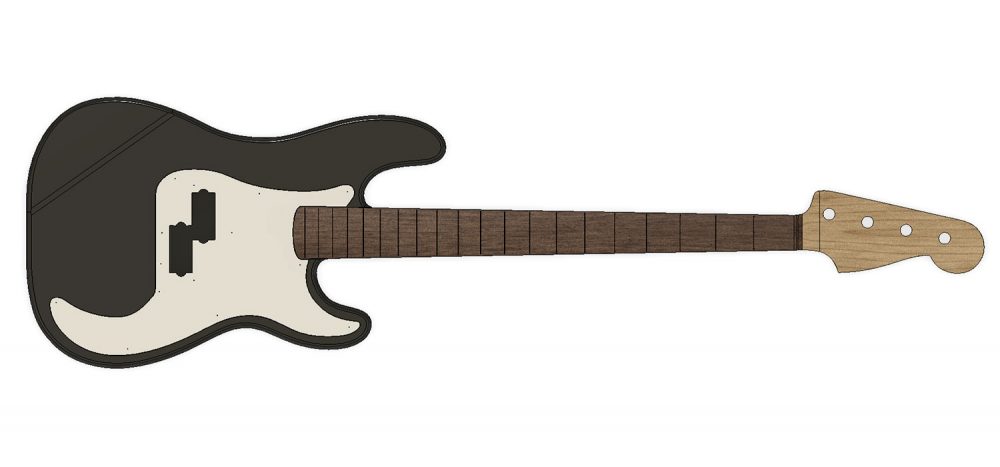

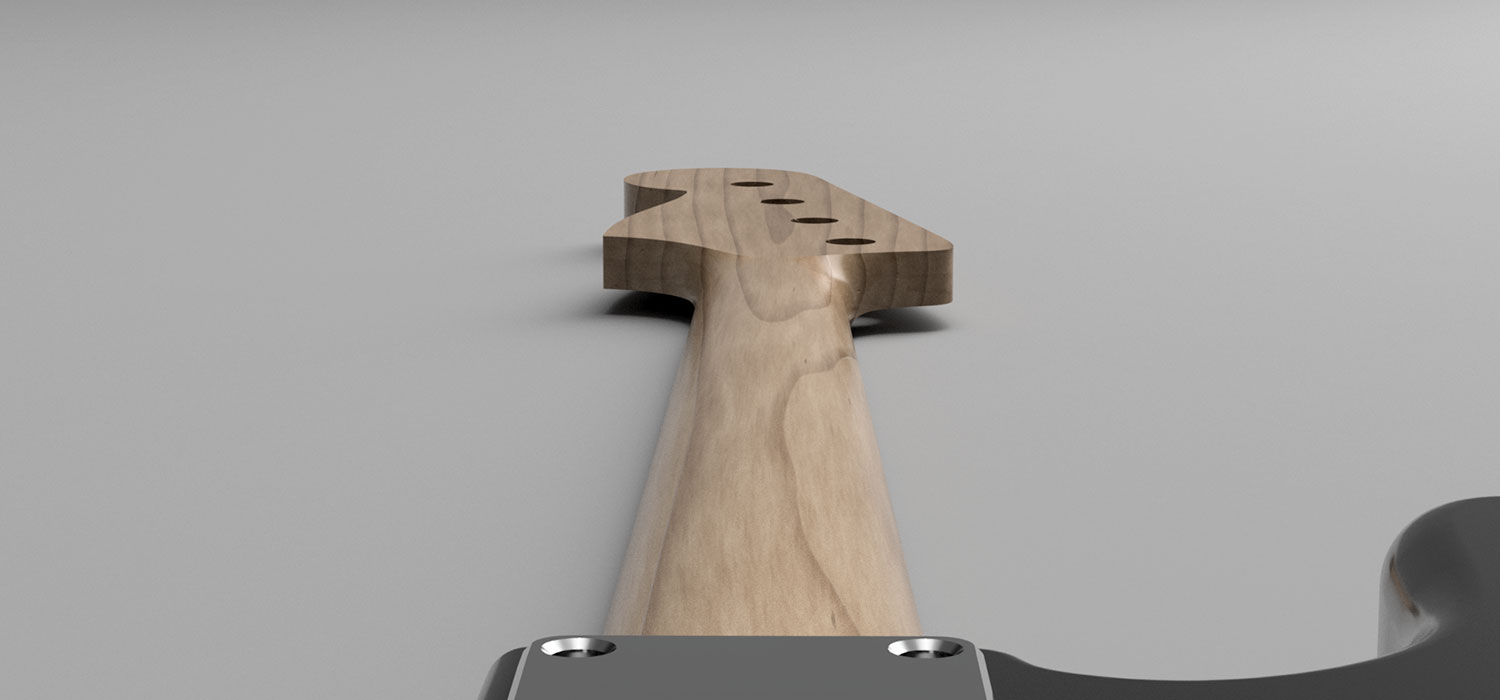

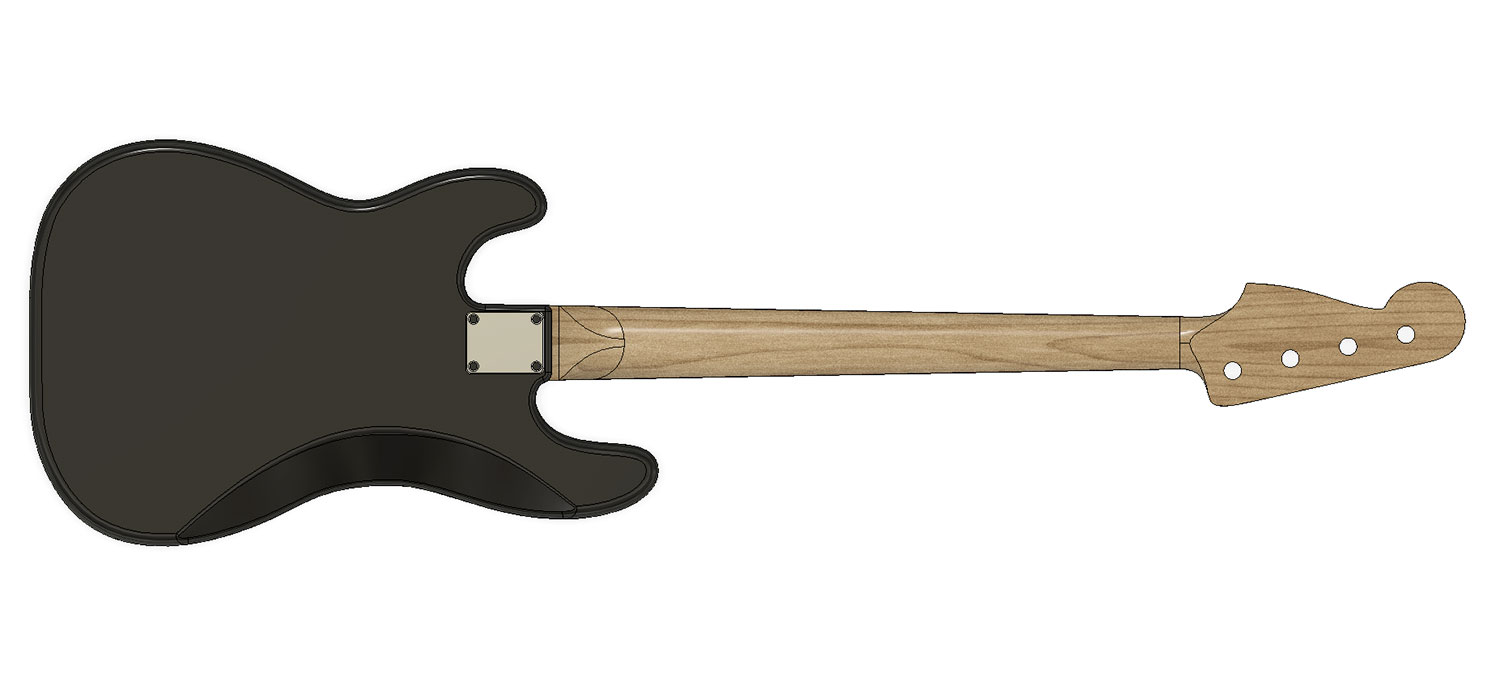

Accurate Bass Model for CNC
Based on a Fender Precision 34″ scale bass
Features
- Properly labelled & organized work
- Faithful, accurate designs

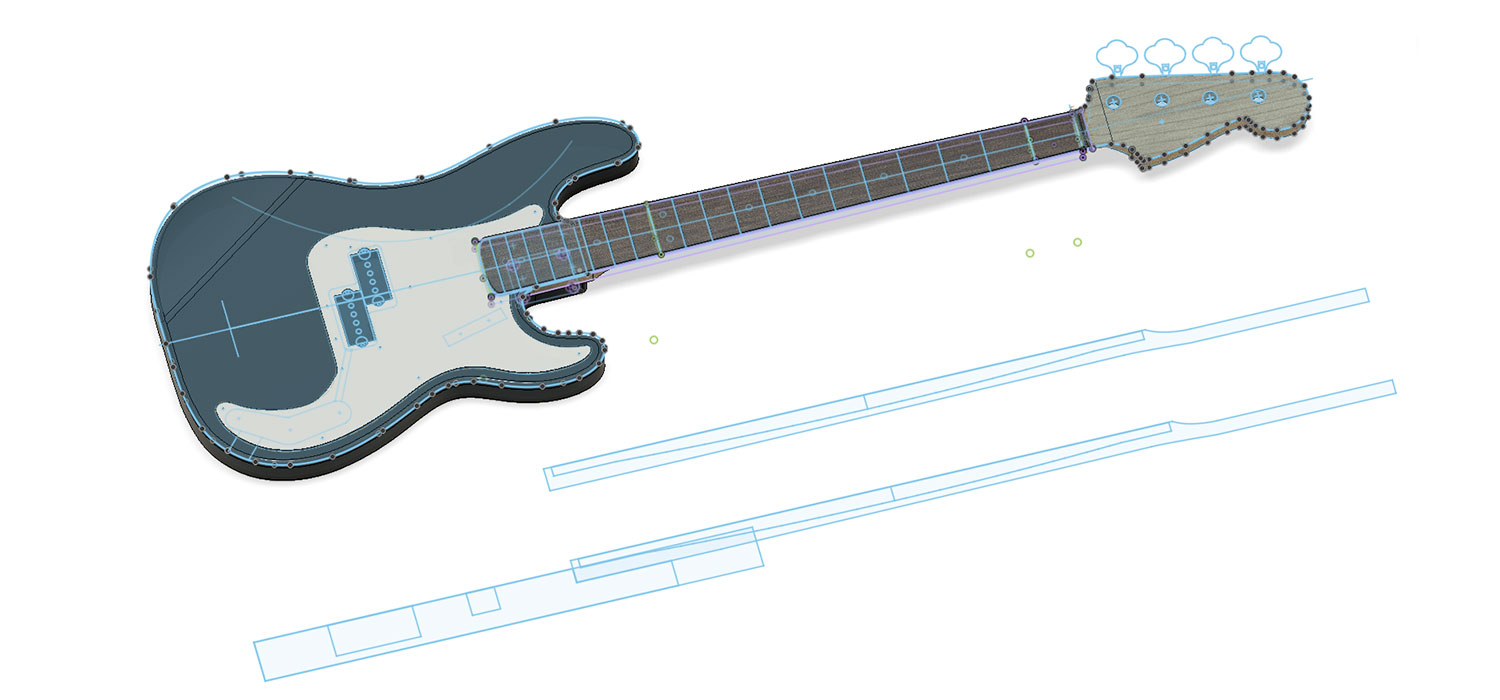

- 2D sketches included (F3D file)
- Suitable formats for CNC (F3D, STEP, IGES)
Available Filetypes
- F3D (Fusion 360 native)
- STEP (vendor neutral)
- IGES (vendor neutral)
Model Notes:
The following drill dimensions are used:

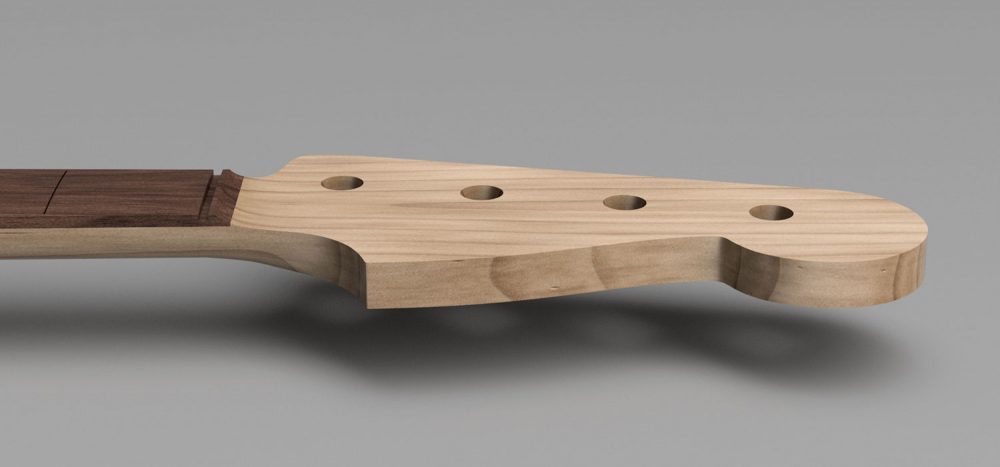

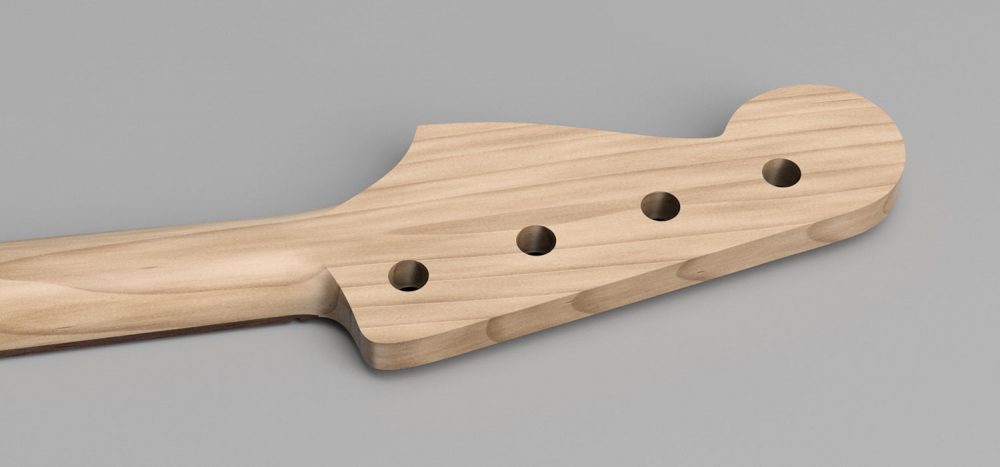

- Tuning machines: 9/16″ Ø | Pickgaurd Screws: 1mm Ø (pilots)
This model does not include the following (allowing for user preference / variable hardware):
- CAM toolpaths
- Truss rod slot
* Neck pocket offset is .01″.
